Distillers corn oil(DCO)/Crude Corn Oil separation system

• Thick syrup, collected from concentrating thin slope in evaporation section, will be fed to static mixer where de-emulsifier will be mixed in required proportion.
• The syrup will be heated by using low pressure steam and then fed to tri-canter.

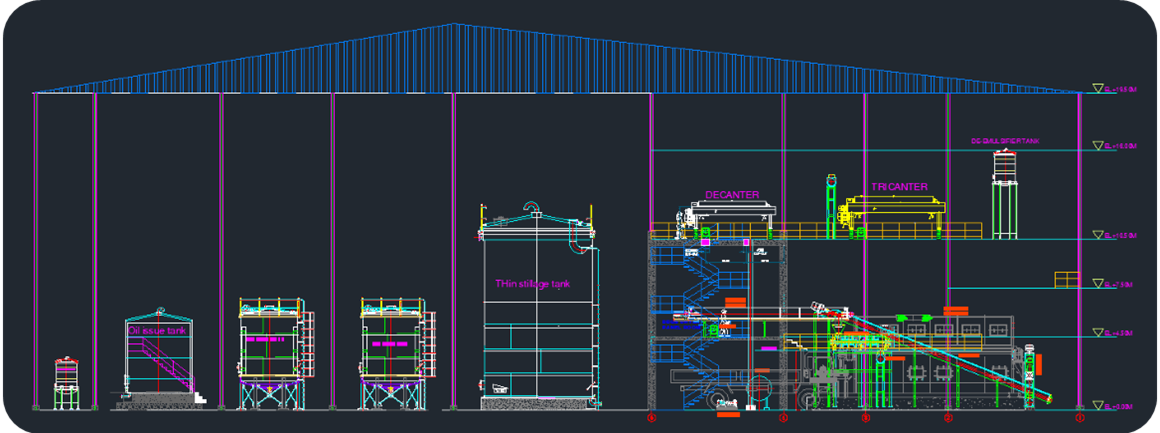

• This mixture will feed to the tri-canter, where the crude oil separation from thick syrup will be done.
• Two more streams will be separated from tri-canter - sludge and thick syrup, after removal of oil. Both these streams will be recycled back to the wet cake for the further drying in DDGS dryer.
• The crude oil separated from tri-canter will be further cooled down to normal temperature and stored in crude oil live storage tank & transferred to crude oil storage tank for issue purpose.
• DDGS quality improves as fat % gets reduced, protein % (weight/weight) improves thereby leading to a higher rate per kg.
